RADIAL BRAKE MASTER CYLINDER BREMBO 15RCS 110A89730 FOR HARLEY DAVIDSON
Wheelbase: 18-20 mm
Piston diameter: 15 mm
Code: 110A89730
Brembo Racing RCS (Ratio Click System) radial brake pumps have the possibility of varying the lever distance on two values: 18 (more modulable) and 20 (more ready), thus varying the response of the braking system.
MotoGP internal pump; CNC machined and hard oxidized forged pump body; Articulated brake lever; Lever distance adjustment; Stop light switch.
The different piston diameters allow you to choose the most suitable RCS for your braking system.
RCS System :
The RCS system patented by Brembo moves the wheelbase of the lever through the rotation of an eccentric.
Switching from one configuration to another is really simple and allows you to adjust the braking according to the characteristics of the circuit, the weather or between road and track
The braking power will always be the same, but the feeling will be perfect!
Technical Features BREMBO RCS 15:
Piston diameter: 15 mm
Lever distance: 18/20 mm
Material: CNC forged aluminum
Finish: Hard anodized
For applications with 1" Harley Davidson handlebars
Bleed screw tightening torque 12:16 Nm
NOT compatible with Cruise control (check microswitch operation)

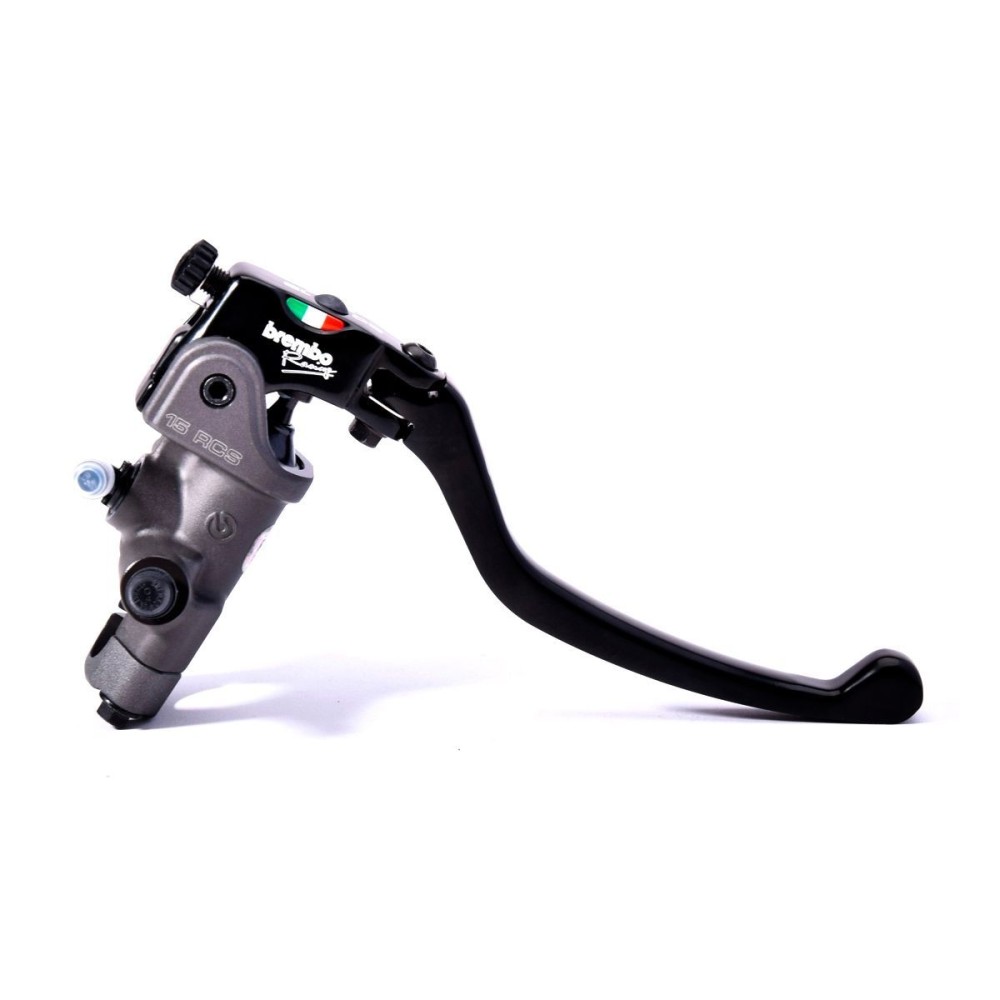

N.B. This picture is only indicative
